Products
Intracoronary Shunts by Chase Medical
Atraumatic Intracoronary Shunts in Multiple Designs and Sizes
Chase Medical offers a wide portfolio of proprietary and well-recognized silicone shunt designs that enable easy insertion and removal. Each design is available in multiple sizes and lengths to accommodate vessel sizes, procedures and surgeon preferences.

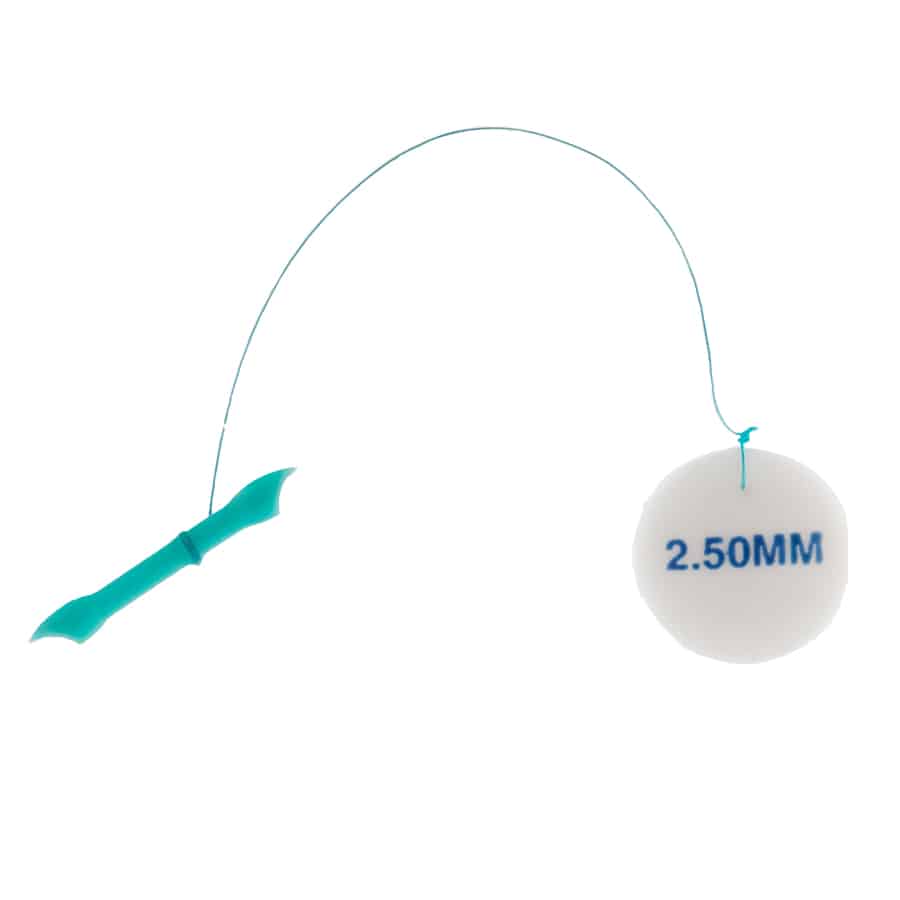

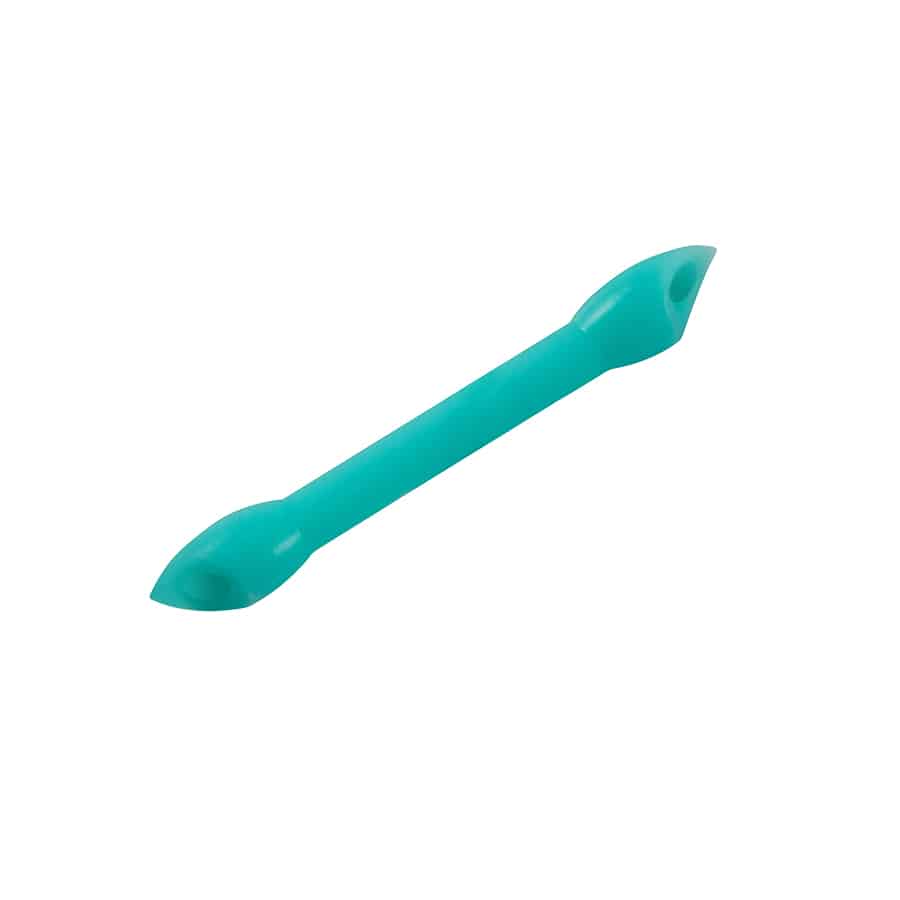

Bevel-Tip Sof-Flo
- Teal color ensures easy detection within the operative site
- Beveled, ultra-soft tip improves ease of insertion
- The proprietary single-mold, kink-resistant silicone design provides flexibility with insertion and enables atraumatic removal
- Radiopaque shunt and radiopaque, non-slip tab with asymmetrically placed tether

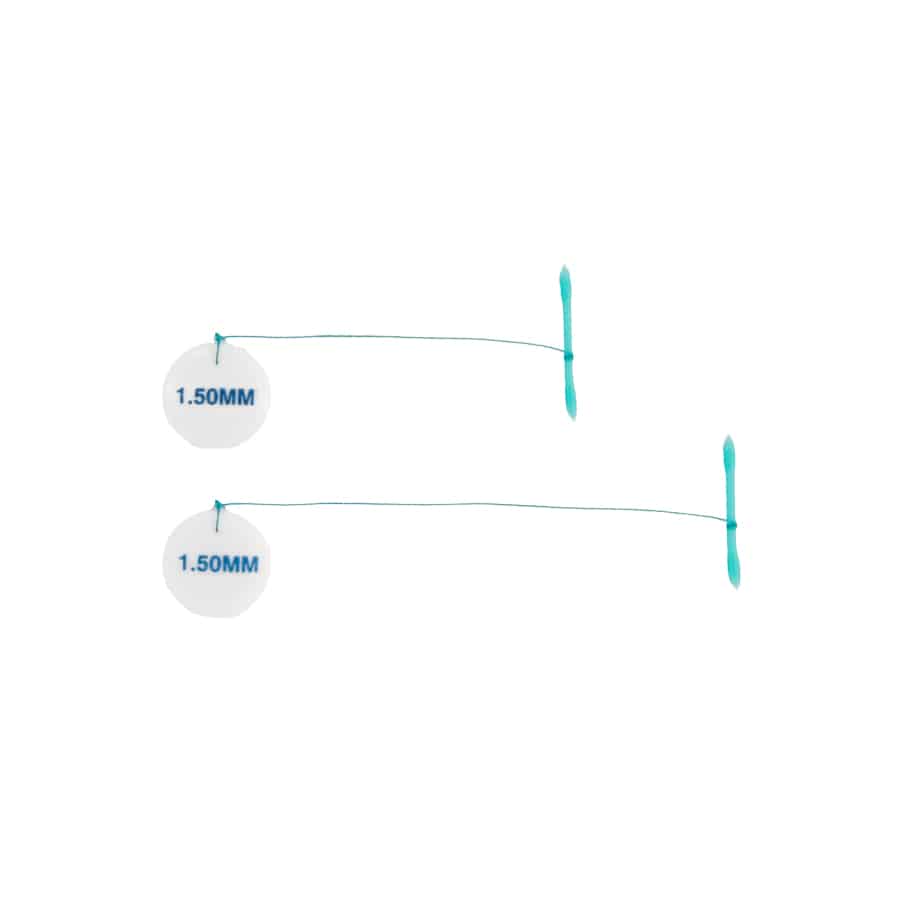

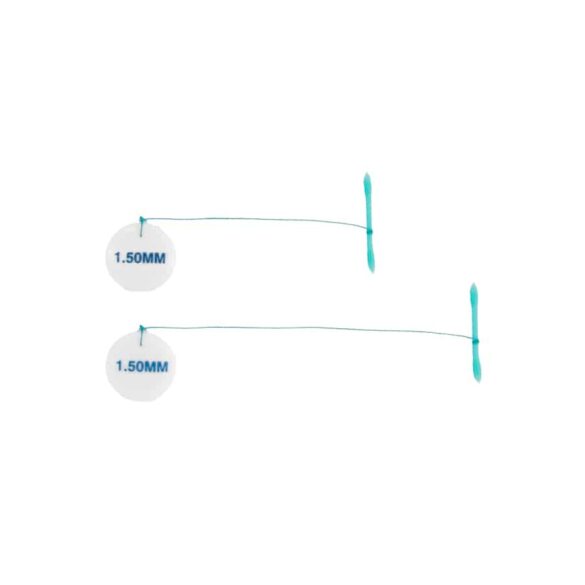

- Available in 12 options including variations in bevel-tip diameter and tether lengths of 1.5” and 2.5”
- Total shunt length 18.5mm

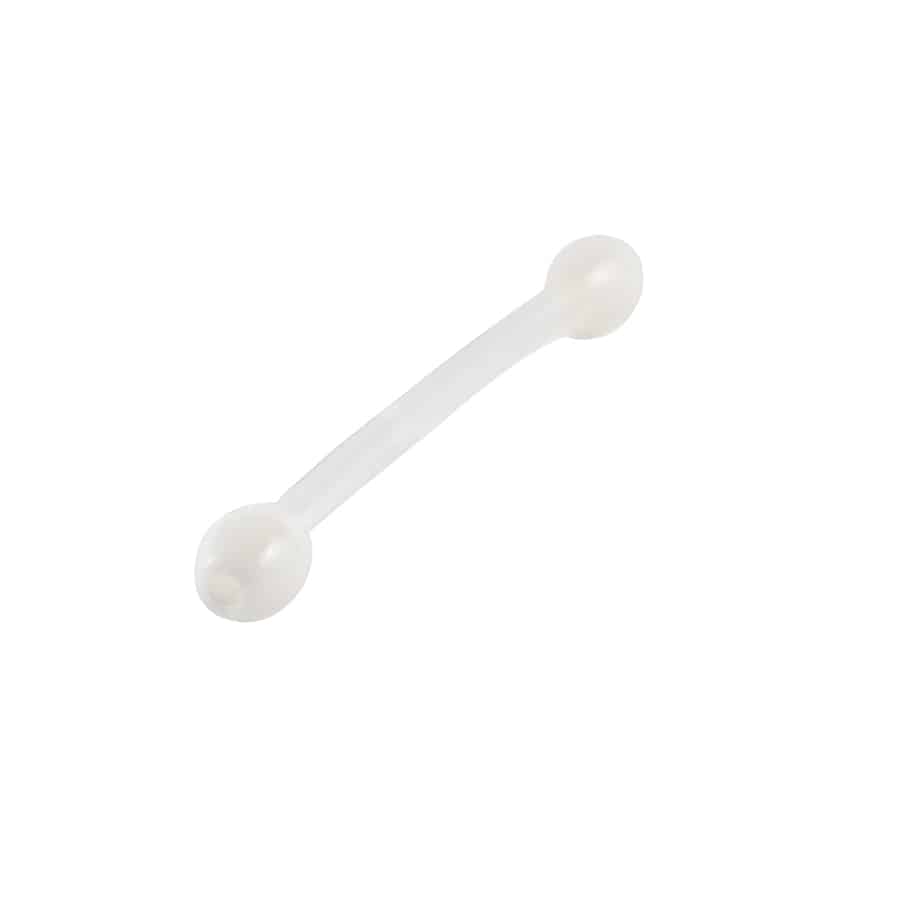

Bulb Tip (Short) Shunt
- 12mm shaft design
- Soft, single-mold silicone design is kink resistant
- Provides flexibility with insertion and enables atraumatic removal
- Radiopaque body and tab
- Non-slip tab with asymmetrically placed tether
- Available in 15mm and 19.5mm total lengths

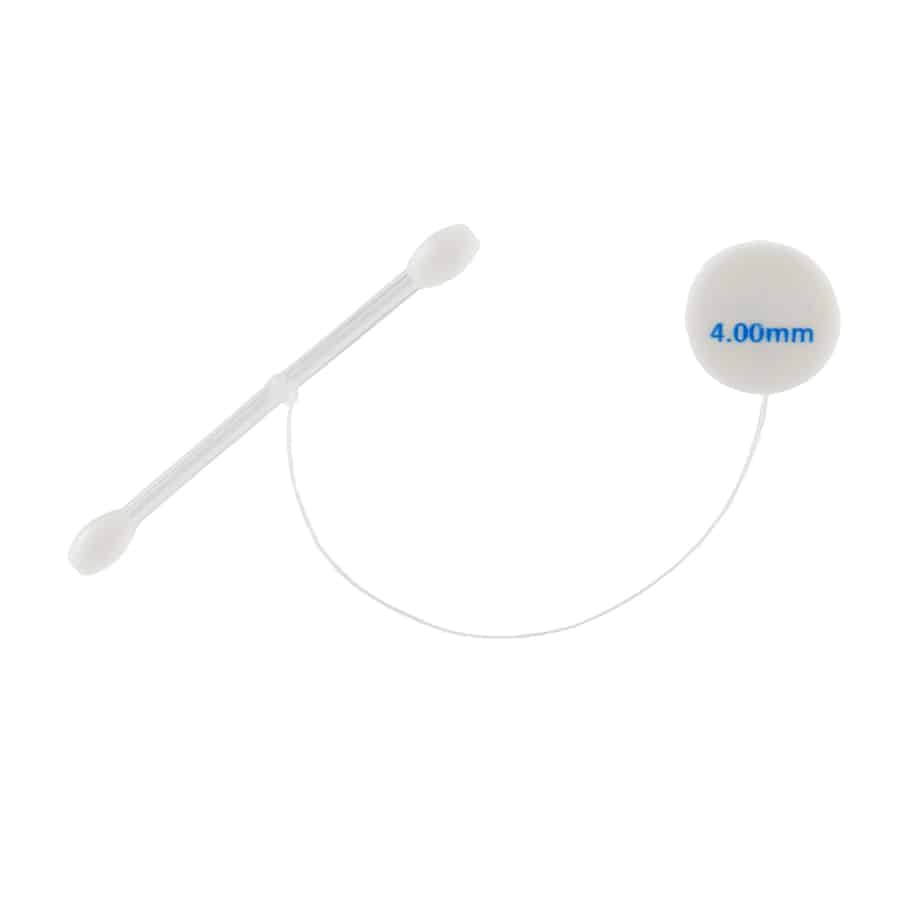

Clear Flow (Long) Shunt
- 30mm shaft design
- Firm, clear shaft provides visibility to the blood flow path
- Soft, silicone bulb tips enable atraumatic insertion
- Radiopaque bulb tips and tab
- Non-slip tab with asymmetrically placed tether
- Available in multiple diameter sizes to right size vessels – 2.0mm through 4.0mm
Description
| Product Code | Description | U/M |
| SHT-1210S | Vessel Shunt, 1.00mm Beveled Tip, 18.5mm Total Length, 2.5″ Tether Length | 10 |
| SHT-1213S | Vessel Shunt, 1.25mm Beveled Tip, 18.5mm Total Length, 2.5″ Tether Length | 10 |
| SHT-1215S | Vessel Shunt, 1.50mm Beveled Tip, 18.5mm Total Length, 2.5″ Tether Length | 10 |
| SHT-1218S | Vessel Shunt, 1.75mm Beveled Tip, 18.5mm Total Length, 2.5″ Tether Length | 10 |
| SHT-1220S | Vessel Shunt, 2.00mm Beveled Tip, 18.5mm Total Length, 2.5″ Tether Length | 10 |
| SHT-1223S | Vessel Shunt, 2.25mm Beveled Tip, 18.5mm Total Length, 2.5″ Tether Length | 10 |
| SHT-1225S | Vessel Shunt, 2.50mm Beveled Tip, 18.5mm Total Length, 2.5″ Tether Length | 10 |
| SHT-1210S-C01 | Vessel Shunt, 1.00mm Beveled Tip, 18.5mm Total Length, 1.5″ Tether Length | 10 |
| SHT-1213S-C01 | Vessel Shunt, 1.25mm Beveled Tip, 18.5mm Total Length, 1.5″ Tether Length | 10 |
| SHT-1215S-C01 | Vessel Shunt, 1.50mm Beveled Tip, 18.5mm Total Length, 1.5″ Tether Length | 10 |
| SHT-1218S-C01 | Vessel Shunt, 1.75mm Beveled Tip, 18.5mm Total Length, 1.5″ Tether Length | 10 |
| SHT-1220S-C01 | Vessel Shunt, 2.00mm Beveled Tip, 18.5mm Total Length, 1.5″ Tether Length | 10 |
| SHT-1223S-C01 | Vessel Shunt, 2.25mm Beveled Tip, 18.5mm Total Length, 1.5″ Tether Length | 10 |
| SHT-1225S-C01 | Vessel Shunt, 2.50mm Beveled Tip, 18.5mm Total Length, 1.5″ Tether Length | 10 |
| SHB-1215S | Vessel Shunt, 1.50mm, Bulb Tip, 15mm Total Length | 10 |
| SHB-1218S | Vessel Shunt, 1.75mm, Bulb Tip, 15mm Total Length | 10 |
| SHB-1220S | Vessel Shunt, 2.00mm, Bulb Tip, 19.5mm Total Length | 10 |
| SHB-1225S | Vessel Shunt, 2.50mm, Bulb Tip, 19.5mm Total Length | 10 |
| SHB-1230S | Vessel Shunt, 3.00mm, Clear Flow, 12mm Shaft, 21mm Total Length | 10 |
| SHB-3020S | Vessel Shunt, 2.00mm, Clear Flow, 30mm Shaft, 36mm Total Length | 10 |
| SHB-3025S | Vessel Shunt, 2.50mm, Clear Flow, 30mm Shaft, 38mm Total Length | 10 |
| SHB-3030S | Vessel Shunt, 3.00mm, Clear Flow, 30mm Shaft, 39mm Total Length | 10 |
| SHB-3040S | Vessel Shunt, 4.00mm, Clear Flow, 30mm Shaft, 42mm Total Length | 10 |
For more information about Intracoronary Shunts from Chase Medical, contact your local MED Alliance Sales Representative, call 888-891-1200, or email us.
